2-Way Component Speaker System 400W Yellow Poly Cone Butyl Surround

Get in gear with the Pyle Gear series These speakers are designed to provide the best quality sound for the budget-minded enthusiast. Youll be blasting your tunes and rocking the block with this component speaker kit. It includes one pair of 6.5 mid-bass speakers one pair of 0.5 tweeters one pair of passive crossover devices a wiring kit grills and installation hardware - its a perfect way to upgrade and expand the range of your factory system. The mid-bass speakers pump with 400 watts of power and fit in most OEM locations. The 100-watt 0.5 silk dome tweeters have three mounting options and a frequency response from 1.3 to 22 kHz. Use the passive crossover networks to separate the signal from your headunit between the mid-bass and tweeter speakers for a richer more accurate sound. Youll hear everything you were meant to hear with Pyle Gear.

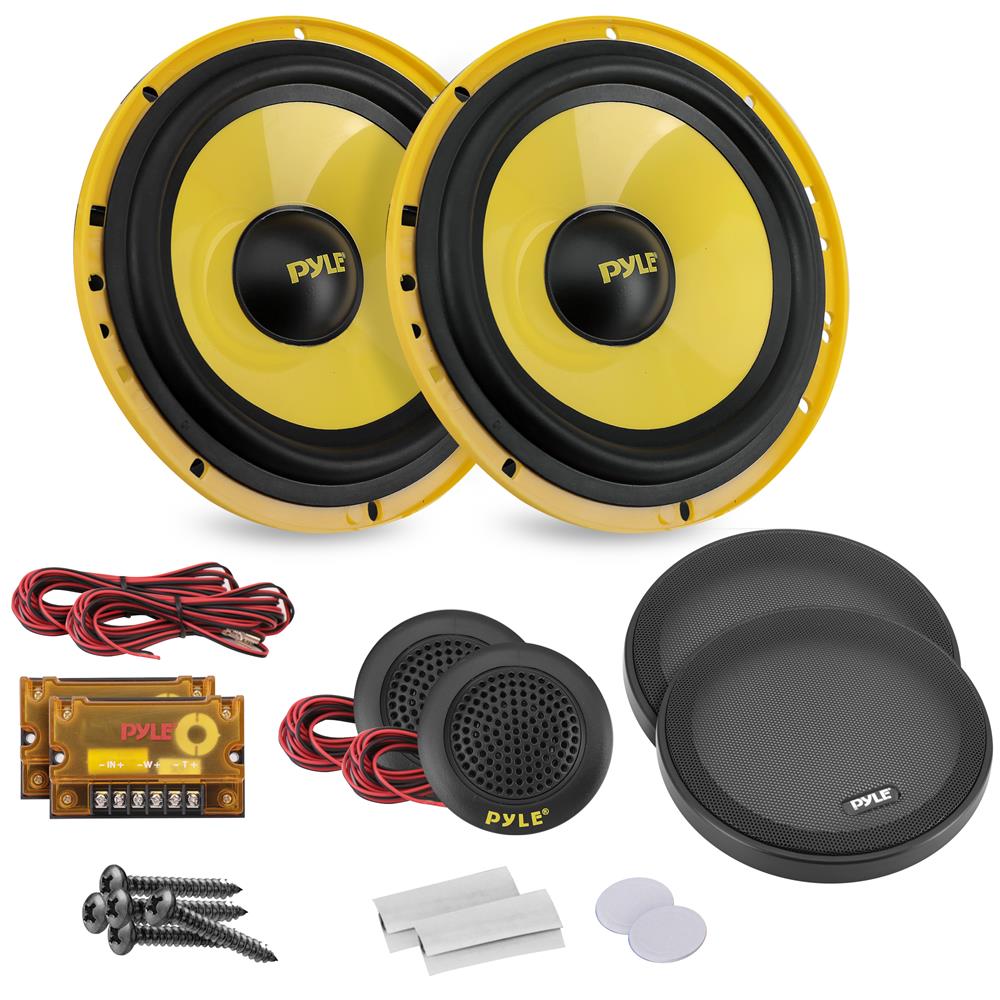

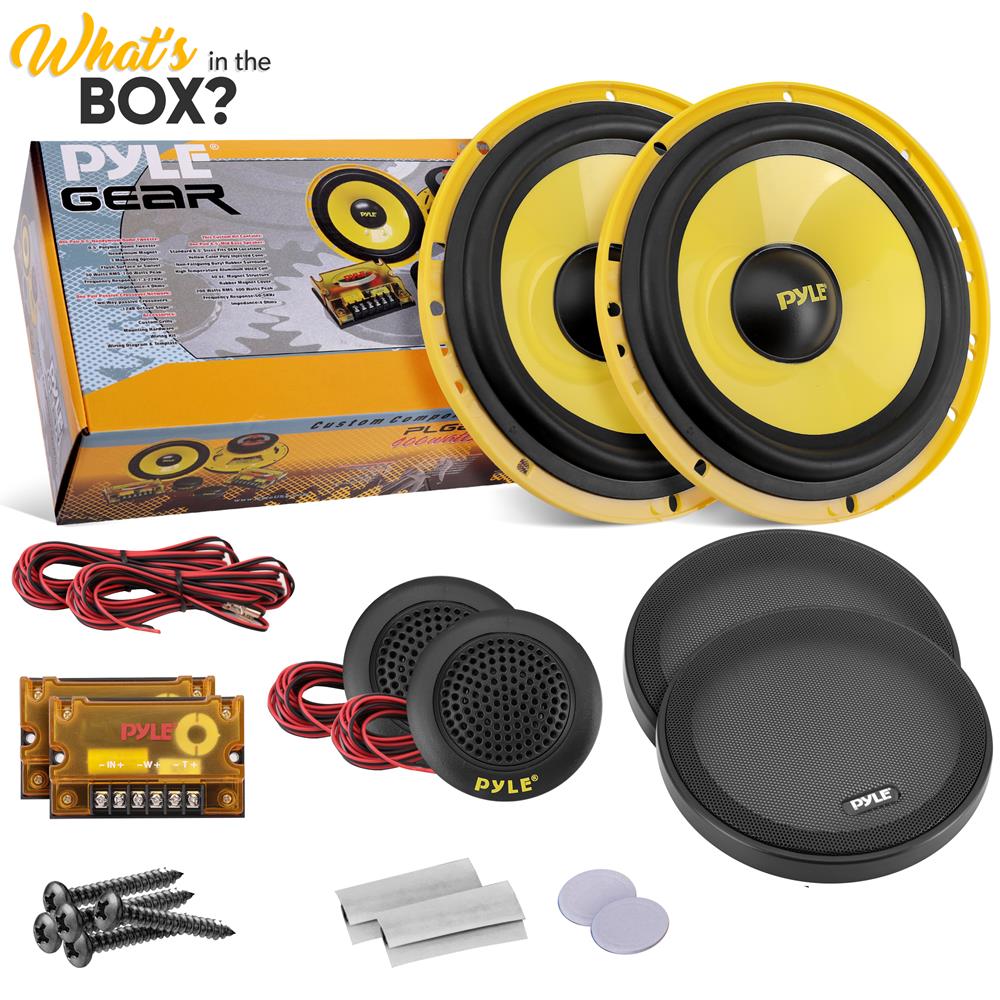

This Custom Kit Contains

One Pair 6.5 Mid Bass Speaker

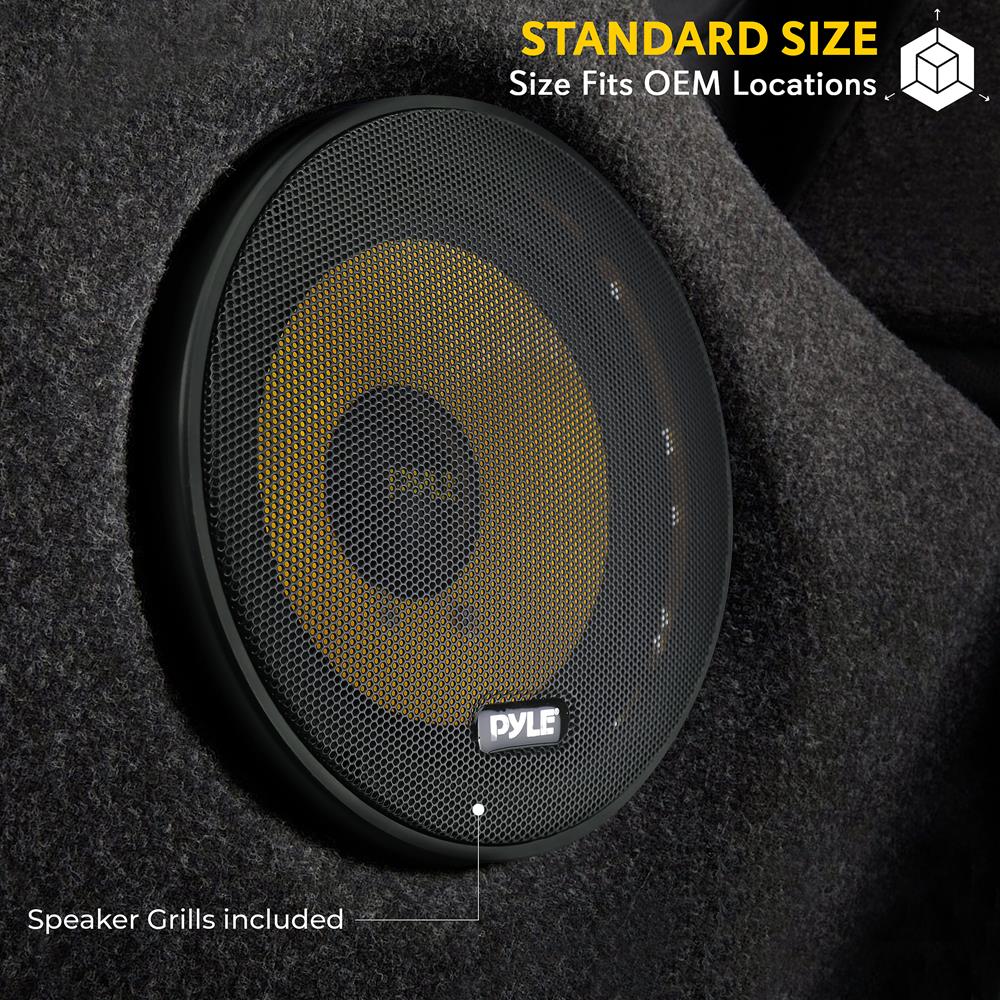

Standard 6.5 Size Fits OEM Locations

Yellow Color Poly Injection Cone

Non-Fatiguing Butyl Rubber Surround

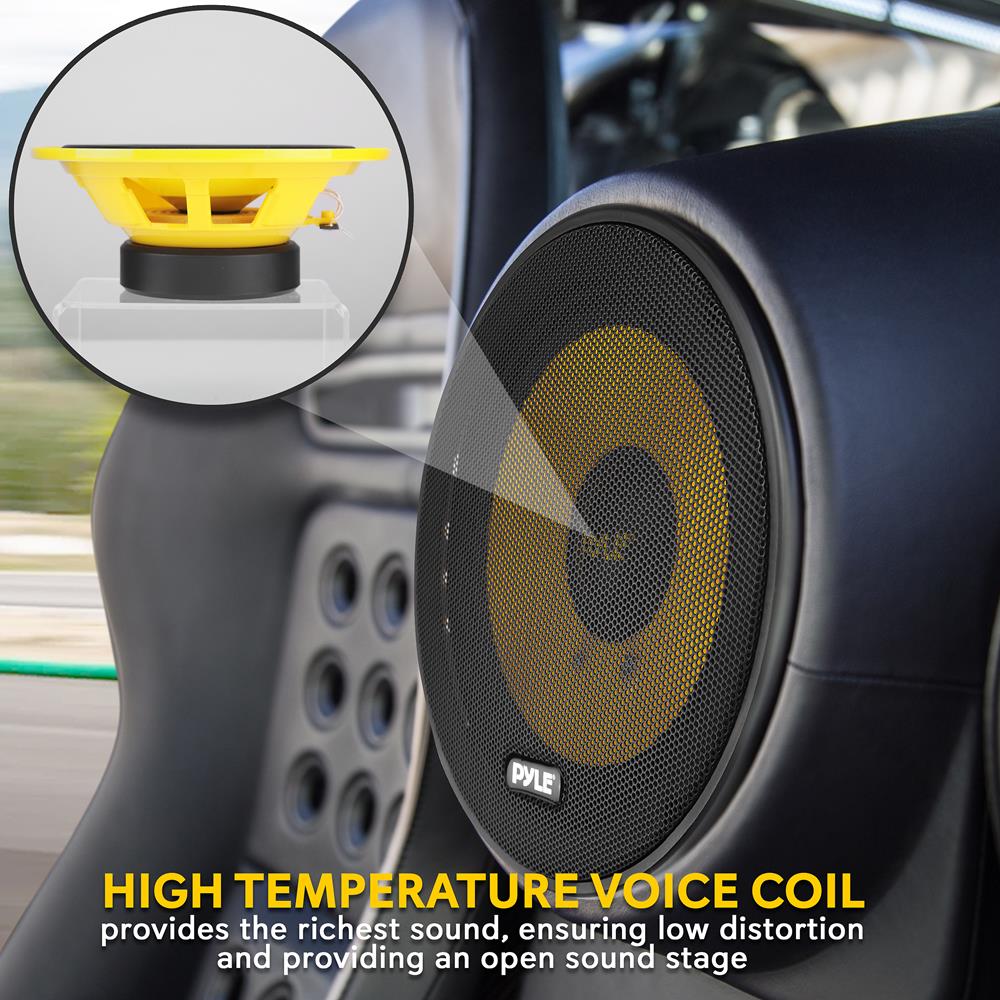

High Temperature Aluminum Voice Coil

Special Electroplated Plastic Basket

40 Oz. Magnet Structure

Power Handling: 200 Watts RMS / 400 Watts MAX

Impedance: 4 Ohm

Frequency response: 50Hz-5KHz

Mounting Depth: 2.65

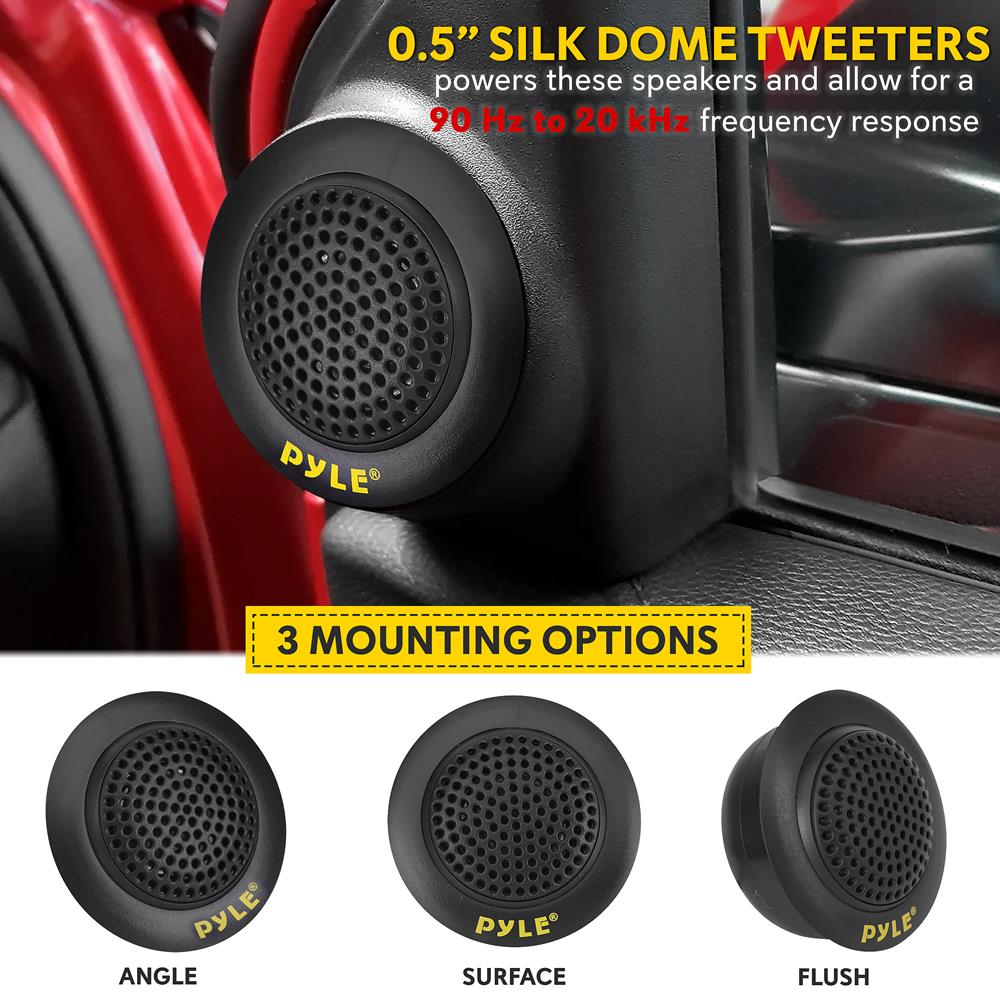

One Pair 0.5" Tweeter:

0.5 Silk Dome Tweeter

Neodymium Magnet

3 Mounting Options: Flush Surface or Angle Mount

50 Watts RMS / 100 Watts peak

Frequency response: 1.3-22KHz

Impedance: 4 Ohm

One Pair Passive Crossover Network:

Two - Way Passive Crossover

12 dB Octave Slope

Accessories

Includes Grills Wires Installation Hardware

Wiring Kit

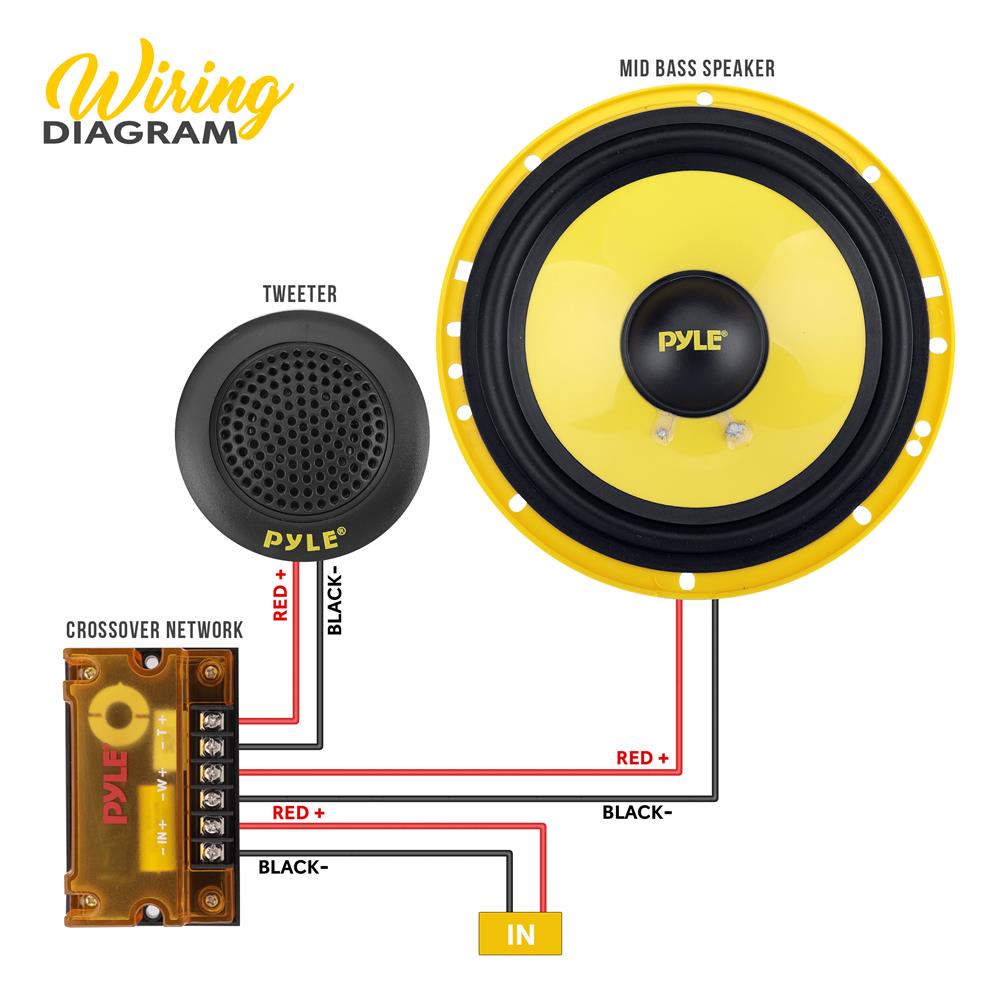

Wiring Diagram Template

Cut-out Size: F142 mm

Get in gear with the Pyle Gear series! These speakers are designed to provide the best quality sound for the budget-minded enthusiast. You’ll be blasting your tunes and rocking the block with this component speaker kit. It includes one pair of 6.5” mid-bass speakers one pair of 0.5” tweeters one pair of passive crossover devices a wiring kit grills and installation hardware – it’s a perfect way to upgrade and expand the range of your factory system. The mid-bass speakers pump with 400 watts of power and fit in most OEM locations. The 100-watt 0.5” silk dome tweeters have three mounting options and a frequency response from 1.3 to 22 kHz. Use the passive crossover networks to separate the signal from your headunit between the mid-bass and tweeter speakers for a richer more accurate sound. You’ll hear everything you were meant to hear with Pyle Gear.
