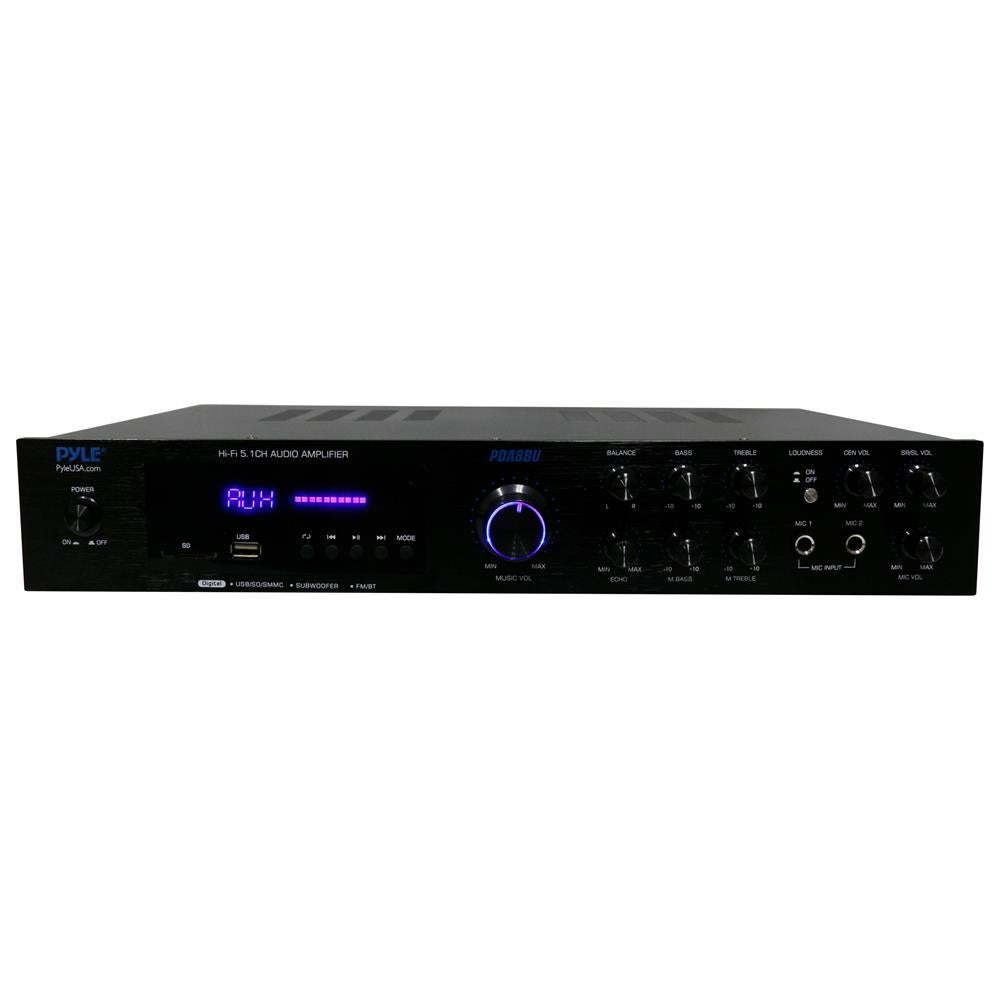

5-Channel Bluetooth Audio Amplifier Wireless Streaming VFD Display

Features:

• 5.1 Genuine Channel Amplifier System
• Big VFD screen display with Frequency level light
• Built-in Bluetooth for Wireless Audio Streaming
• Auto Scan Memory Radio Station PREVIOUS/NEXT Control
• MP3 Digital Audio File Playback
• SD Memory Card & USB Flash Drive Readers
• (2) 1/4’’ Audio Input Jacks (Mic1 Mic2)
• Microphone ECHO/Volume/Treble/Bass Control
• Music Treble/Bass/Balance Rotary Control
• Central and Surround Volume Control
• Light-on General Music Rotary Volume Control
• Loudness On/Off Button

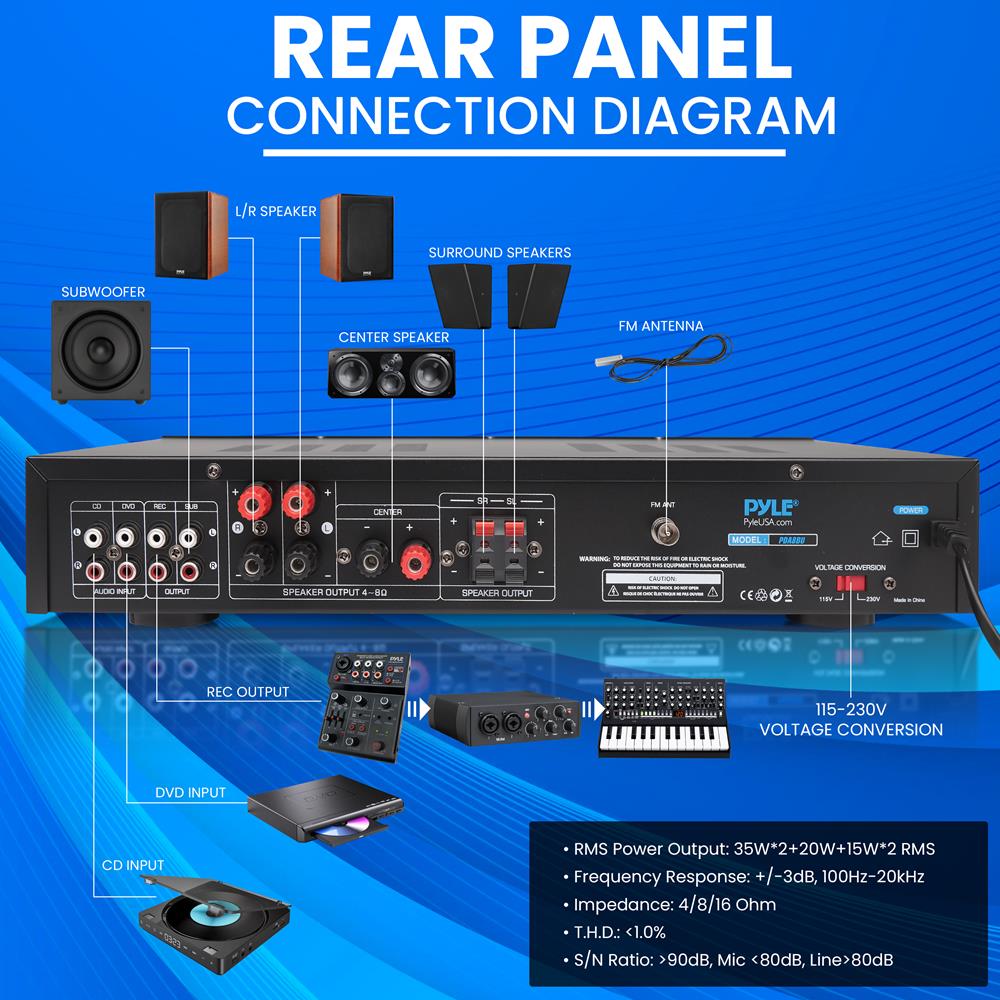

• (2) AUX Input Jack
• (1) Line Output
• (1) Subwoofer Signal Output
• Main Speaker Banana Binding Post Connector
• Surround and Center Speaker Press-type Connector
• 115/230V Switchable Power Supply

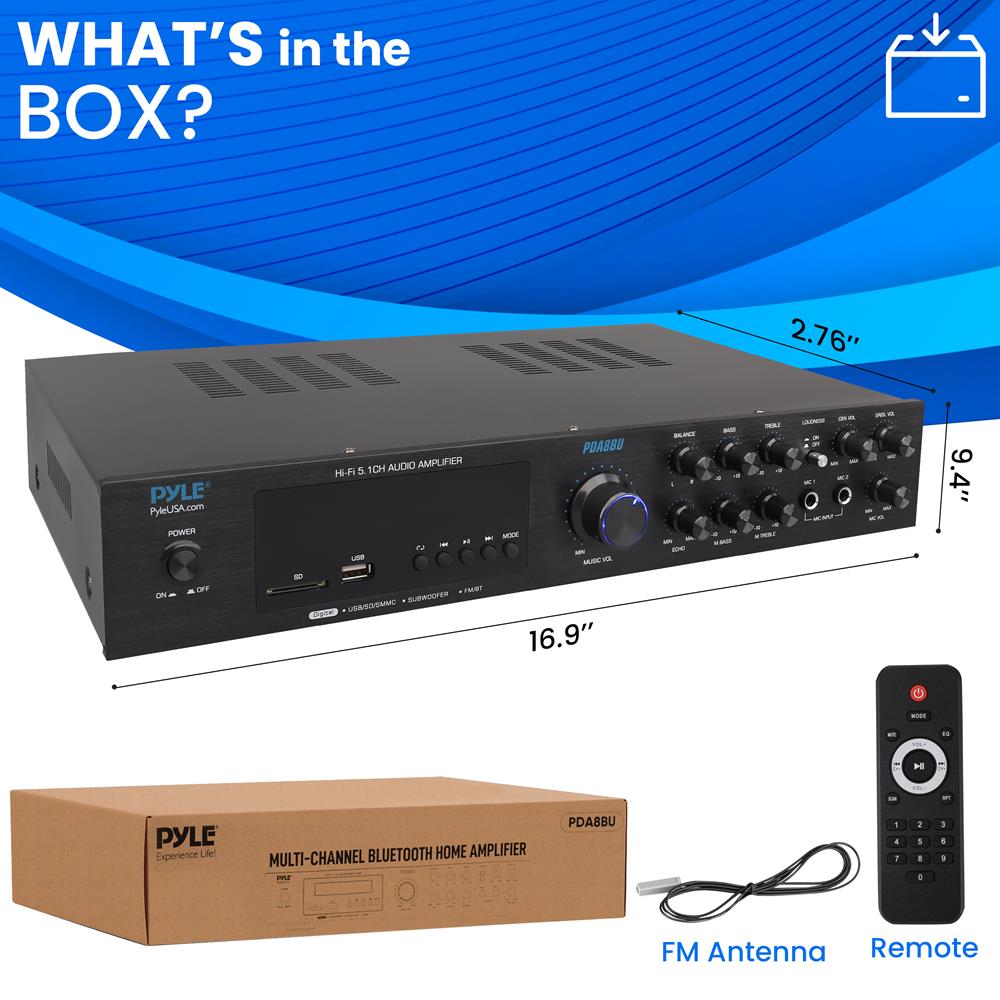

What’s in the Box:

• (1) Amplifier Unit
• (1) Remote Control
• (1) FM Antenna

Bluetooth Connectivity:

• Built-in Bluetooth for Wireless Music Streaming Compatible with All of Today’s Latest
• Bluetooth Devices and NAS (iPhone Androids Smartphones iPad Tablets etc.)
• Bluetooth Version: 5.0
• Bluetooth Network Name: ‘BT”
• Bluetooth Network Password: No
• Wireless Range: Up to 40Ft

Technical Specs:

• RMS Power Output: 35W*2+20W+15W*2 RMS
• Frequency Response: +/-3dB 100Hz-20kHz
• Impedance: 4/8/16 Ohm
• T.H.D.: <1.0%
• S/N Ratio: >90dB Mic <80dB Line>80dB
• Microphone sensitivity: 10mV
• USB/SD Flash Memory Support: Up to 32GB
• Digital File-type Playback Support: MP3 WMA WAV
• Remote Control Battery: (1) x 3V Lithium Button Cell CR2025 (Included)
• Power Supply: 115V/230V Switchable
• Dimensions (L x W x H): 16.9’’ x 9.4’’ x 2.76’’ –inches
